How to Measure for a Custom Range Hood
Measure accurately before requesting your custom quote. Take a few simple measurements to determine the recommended width, depth and height for your custom wall-mount or island range hood.
Free Design Consultation
Custom Built to Your Size
CAD Drawings Included
Project Review
Before You Measure
Tape Measure
Use a standard tape measure in inches.
Ceiling Height
Know the total height from floor to ceiling.
Cooktop Dimensions
Have your cooktop width and depth ready.
Kitchen Photos
Photos or drawings help our team verify your measurements.
Step 1 — Choose Your Installation Type

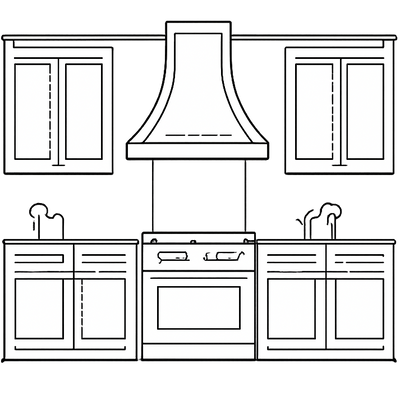

Wall Mount
Installed against a wall, typicallybetween cabinets or as afreestanding focal point.

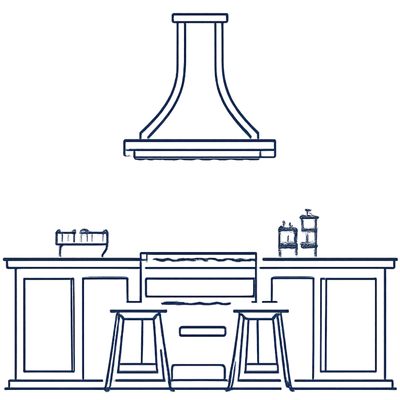

Island Mount
Suspended from the ceilingabove a kitchen island orpeninsula.
Not Sure
Upload a kitchen photo and ourdesign team will help determinethe correct configuration.

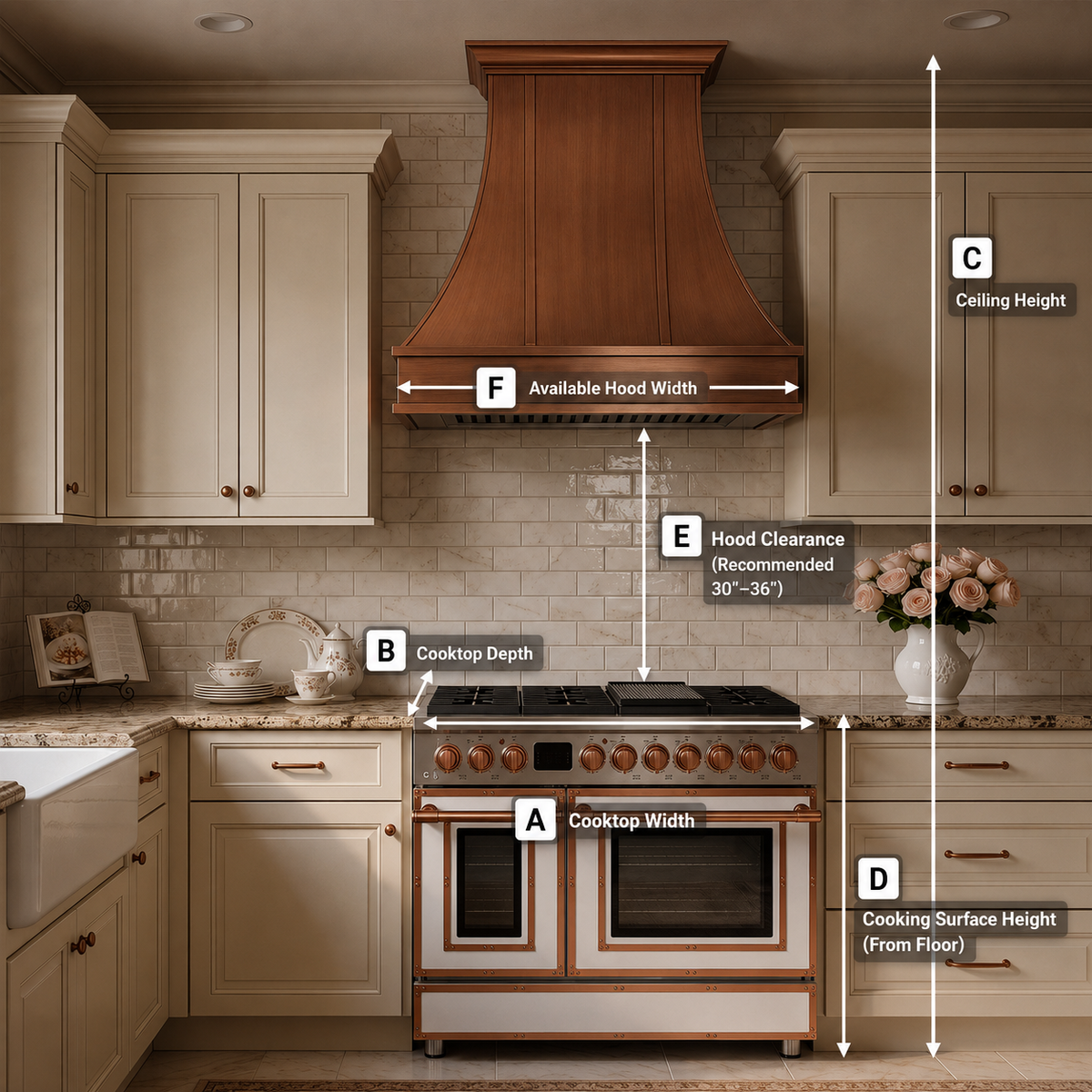

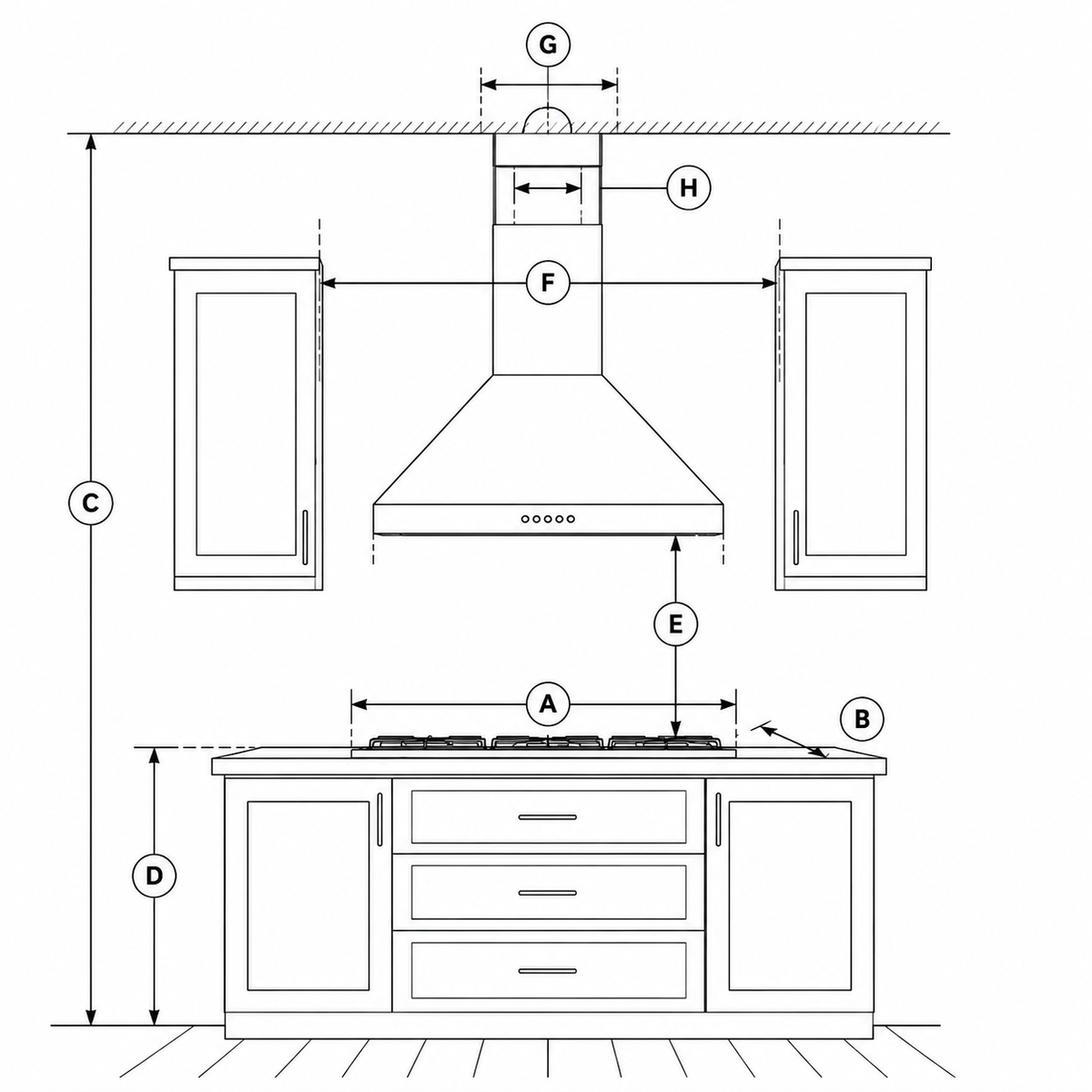

Step 2 — Take These Measurements (Wall Mount)
A. Cooktop Width
Measure the total width
of your cooktop.
B. Cooktop Depth
Measure front to back of the cooktop.
C. Floor to Ceiling
Measure from finished
floor to ceiling.
D. Floor to Cooking Surface
Measure from floor to
top of cooking surface.
E. Hood Clearance
Distance from cooking
surface to bottom of
hood (recommended
30"–36").
F. Available Hood Width
Available space between
cabinets or walls.
G. Duct Center Location
Center of duct opening
from wall or cabinets.
H. Duct Size
Diameter or size of your duct.
Step 3 — Enter Your Measurements
Please provide accurate measurements to ensure proper fit and installation of your custom range hood.

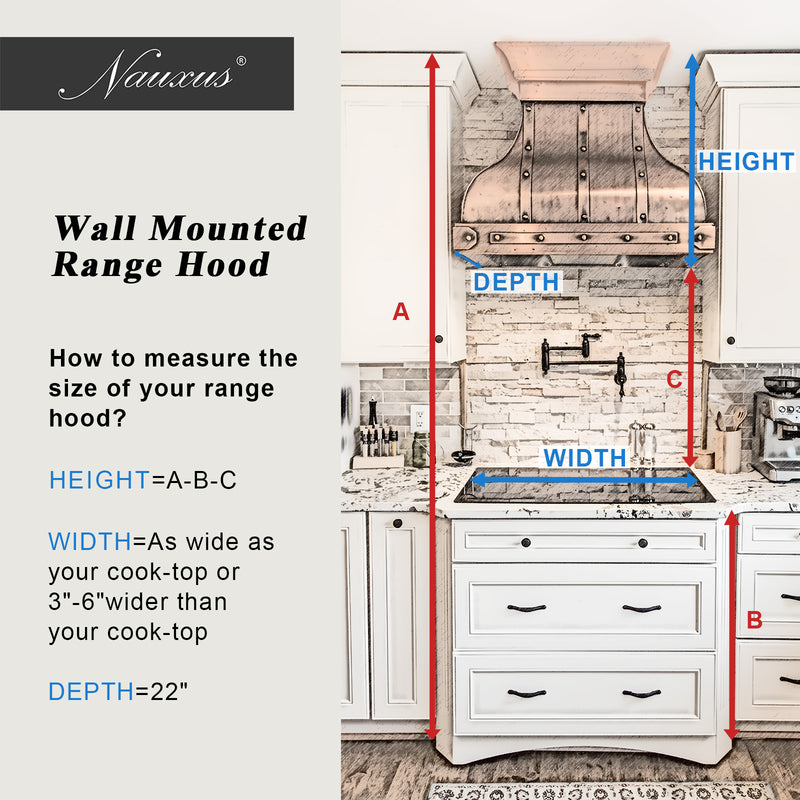

Wall mount hoods are installed against a wall above your cooktop. Ensure you have adequate wall support and clearance.

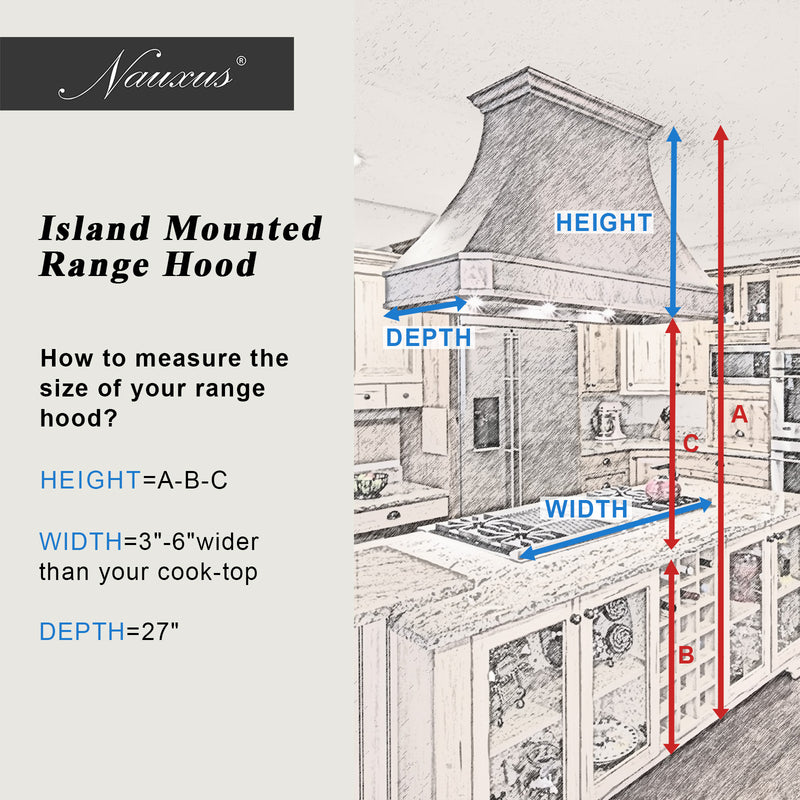

Island mount hoods hang from the ceiling above a kitchen island. Verify ceiling height and structural support before installation.
Measure the total width of your cooktop.
inches
Measure front to back of the cooktop.
inches
Measure from finished floor to ceiling.
inches
Measure from floor to top of cooking surface.
inches
Distance from cooking surface to bottom of hood.
inches
Available space between cabinets or walls.
inches
Center of duct opening from wall.
inches from left wall
MEASUREMENT HELP
Important Before Ordering
Verify the cooking appliance manufacturer's required clearances.
Confirm the ventilation insert model before finalizing dimensions.
Check duct size, duct direction and ceiling obstructions.
Review local requirements for ventilation and make-up air.
Final dimensions must be approved on the Nauxus CAD drawing.
Installation should be completed by a qualified professional.
50% 50%Frequently Asked Questions
Everything you need to know about our premium copper kitchen hardware
Your range hood should generally be at least as wide as your cooking surface. For island installations or high-output cooking appliances, a wider hood may be recommended to improve smoke and grease capture.
The final installation clearance should follow the requirements of your cooking appliance and ventilation insert. Many custom projects begin with a clearance of approximately 30"–36", but the final mounting height should always be verified for your specific appliance and insert.
A preliminary hood body height can be estimated by subtracting the cooking surface height and the planned hood clearance from the total ceiling height. If your hood will not go all the way to the ceiling, or if you plan to include crown molding or trim, those details should also be taken into account.
At minimum, we recommend providing your cooktop width, cooktop depth, ceiling height, cooking surface height, and preferred installation type. If available, kitchen photos, cabinet dimensions, or architectural drawings are also very helpful.
A wall-mount hood is installed against a wall, usually between cabinets or as a freestanding focal point. An island hood is suspended from the ceiling above a kitchen island or peninsula and may require a wider capture area depending on the installation.
Yes, ideally. The insert dimensions, airflow, duct size, and mounting requirements can all affect the final hood dimensions. If you have not selected an insert yet, our team can help guide you based on your project needs.
That is completely fine. Submit your best preliminary measurements along with kitchen photos, and our team will review them with you during the design process. Final dimensions will be confirmed on the CAD drawing before production begins.
No. The results on this page are for preliminary design and quoting purposes only. Final dimensions will always be reviewed and confirmed through the Nauxus design process and approved on the final CAD drawing before production.
Yes. We strongly recommend uploading straight-on kitchen photos, cabinet layouts, or architectural drawings when submitting your quote request. These help our design team verify your measurements and recommend the best hood proportions.
Once we receive your measurements and project details, our team will review the information, contact you if clarification is needed, and prepare a custom quote. If you move forward, we will create CAD drawings for your approval before production.
