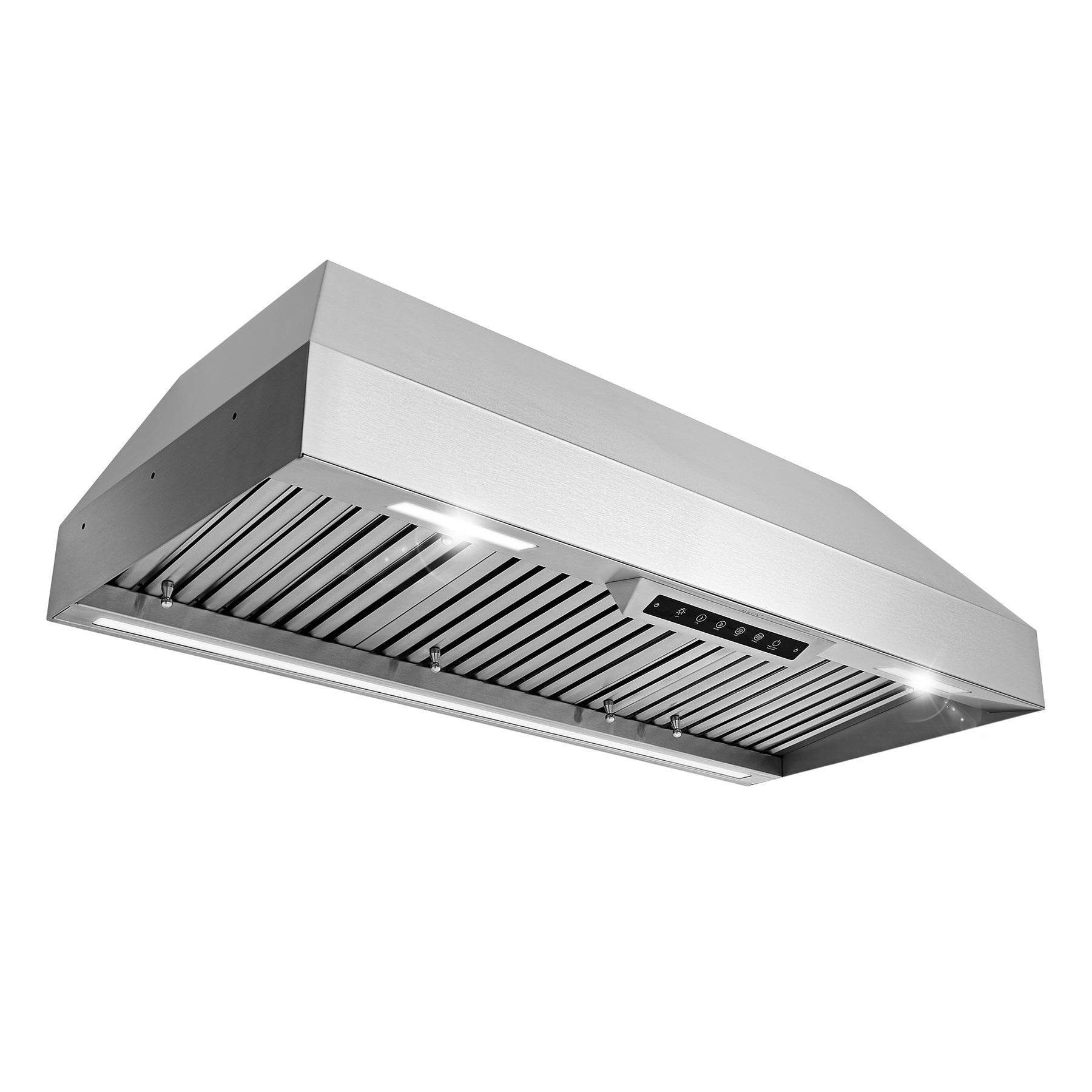

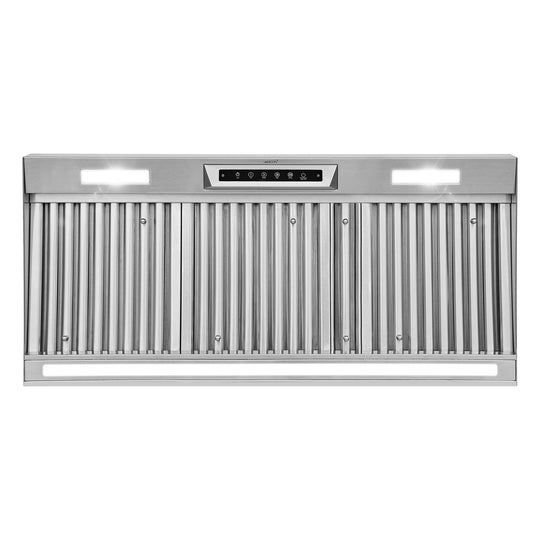

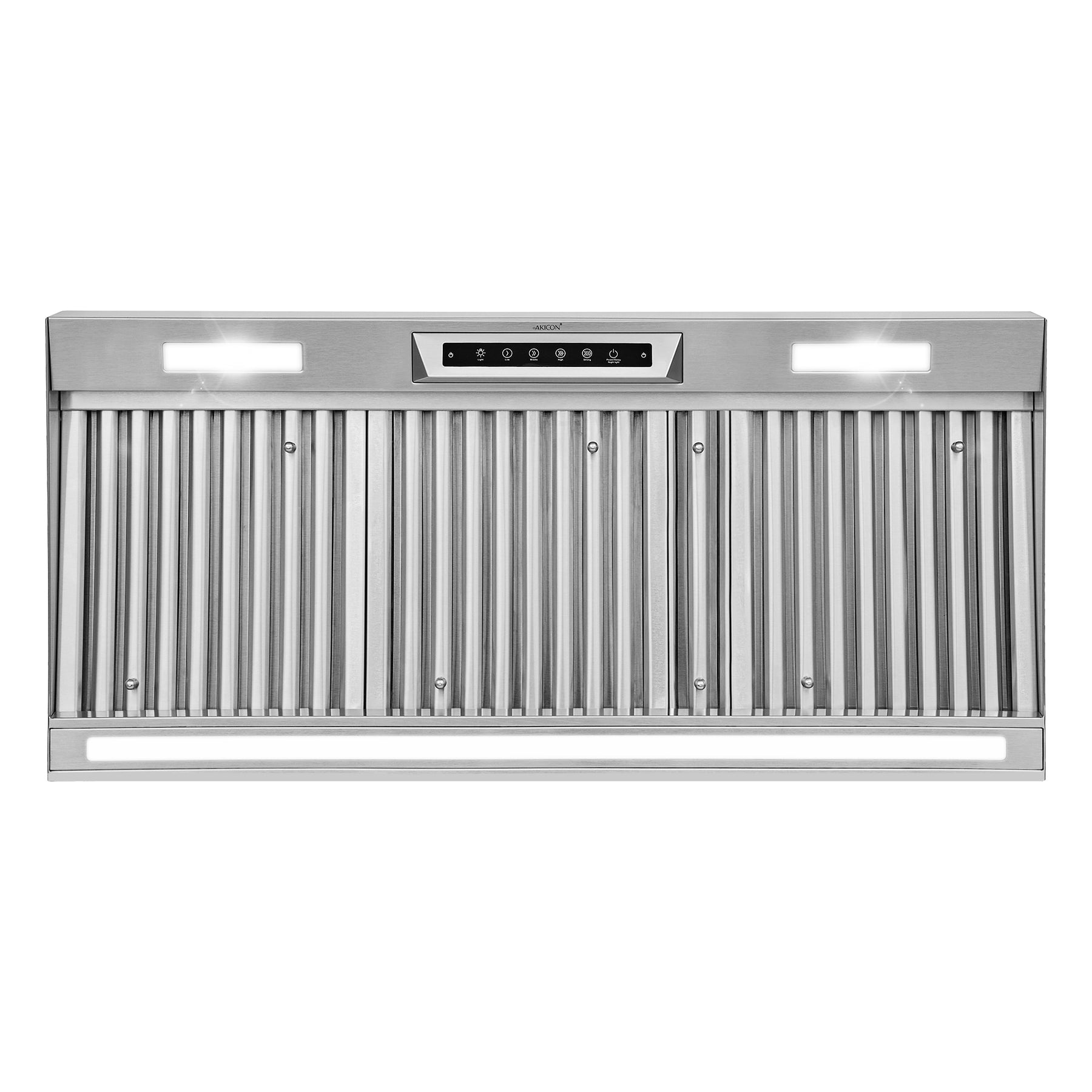

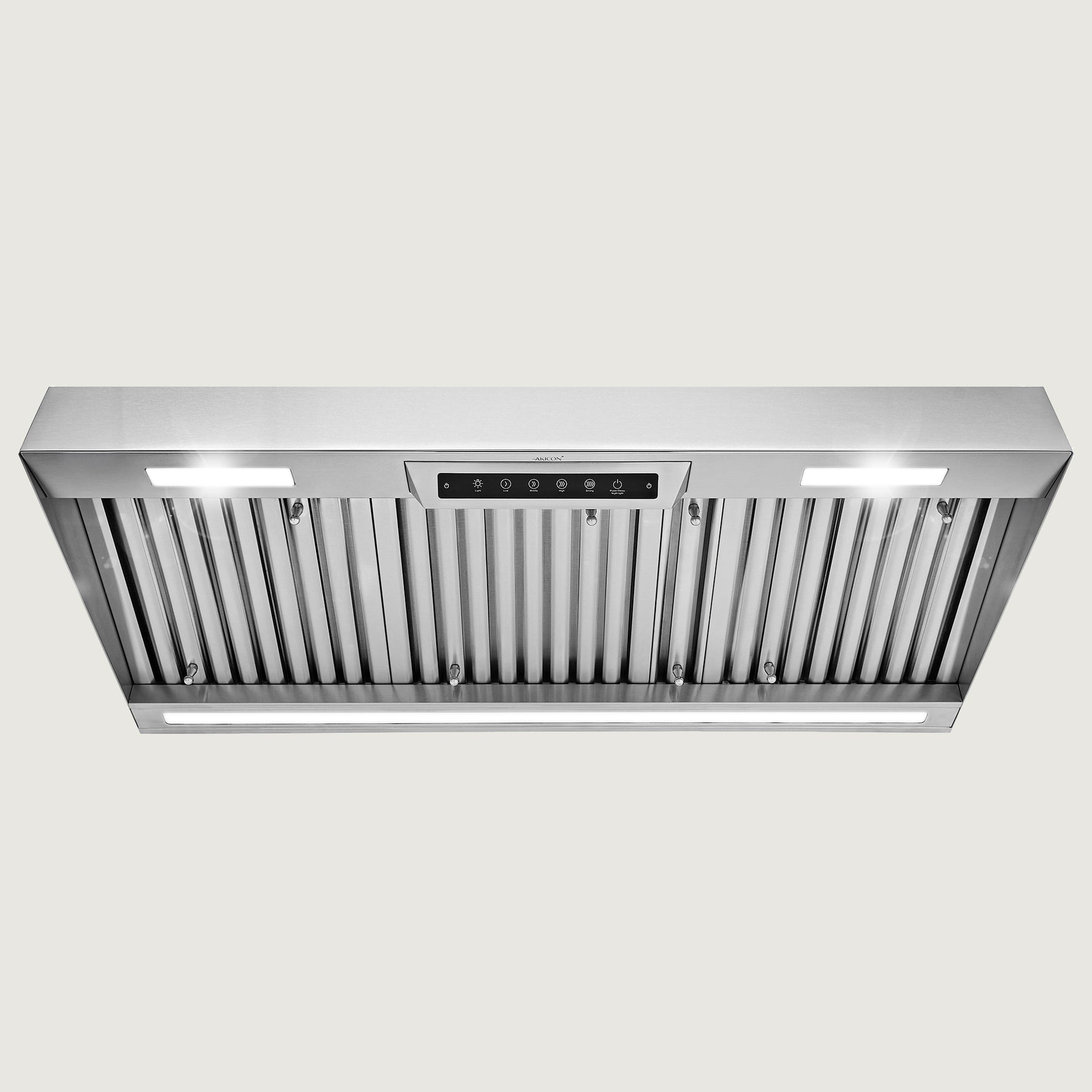

Smart Ventilation Designed for Modern Kitchens
Upgrade your kitchen with powerful ventilation, intelligent controls, and customizable lighting. Combining professional-grade performance with a sleek built-in design, this range hood insert efficiently removes smoke, grease, and cooking odors while enhancing everyday convenience.

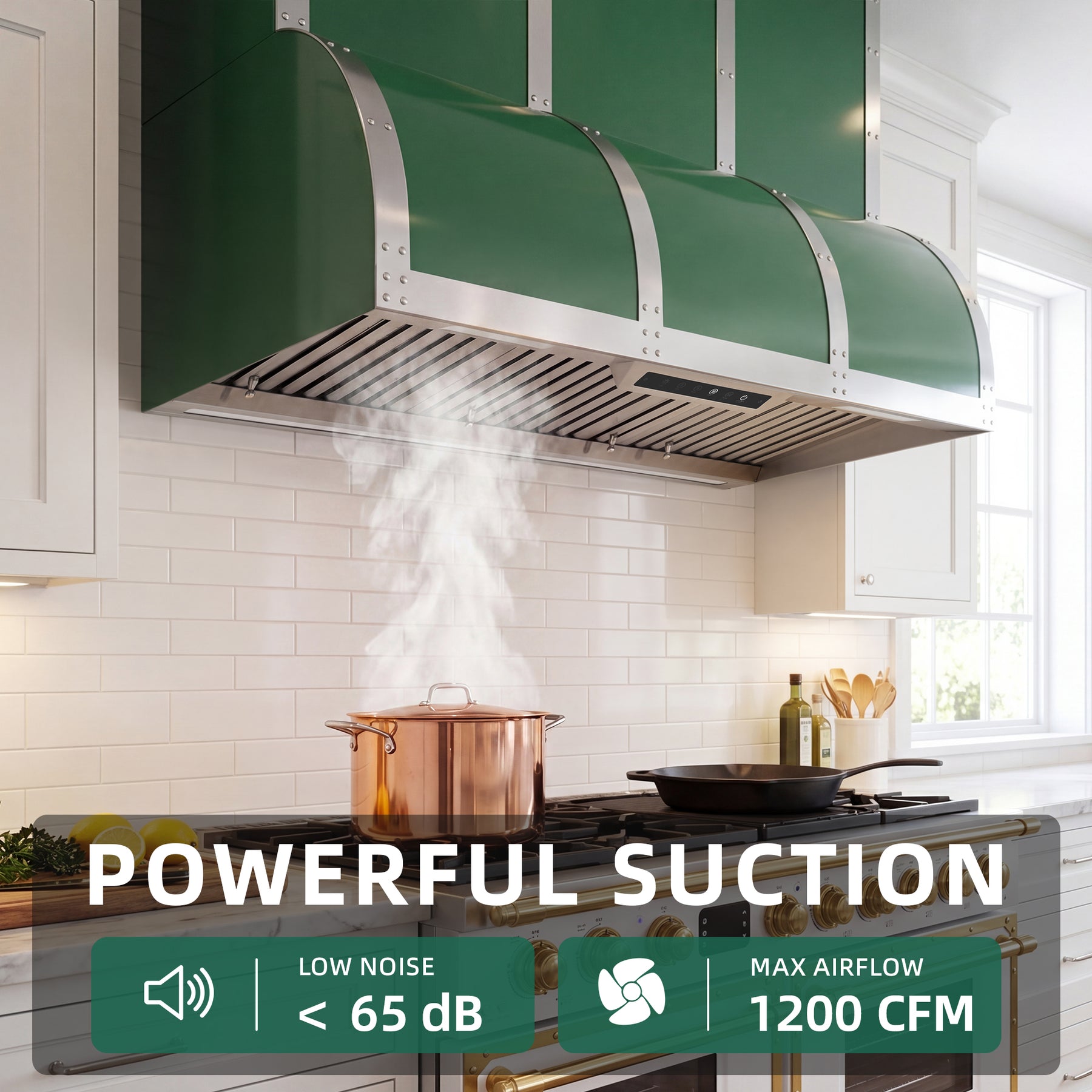

Powerful 1200 CFM Airflow
Equipped with a dual-motor system and dual-intake design, this range hood delivers up to 1200 CFM airflow for effective smoke and odor removal. The optimized intake structure improves air capture across the entire cooktop, making it ideal for everything from everyday cooking to high-heat grilling.
Quiet Operation
Enjoy a cleaner kitchen without excessive noise. Even at high performance levels, the hood operates at approximately 65dB, helping maintain a comfortable cooking environment.

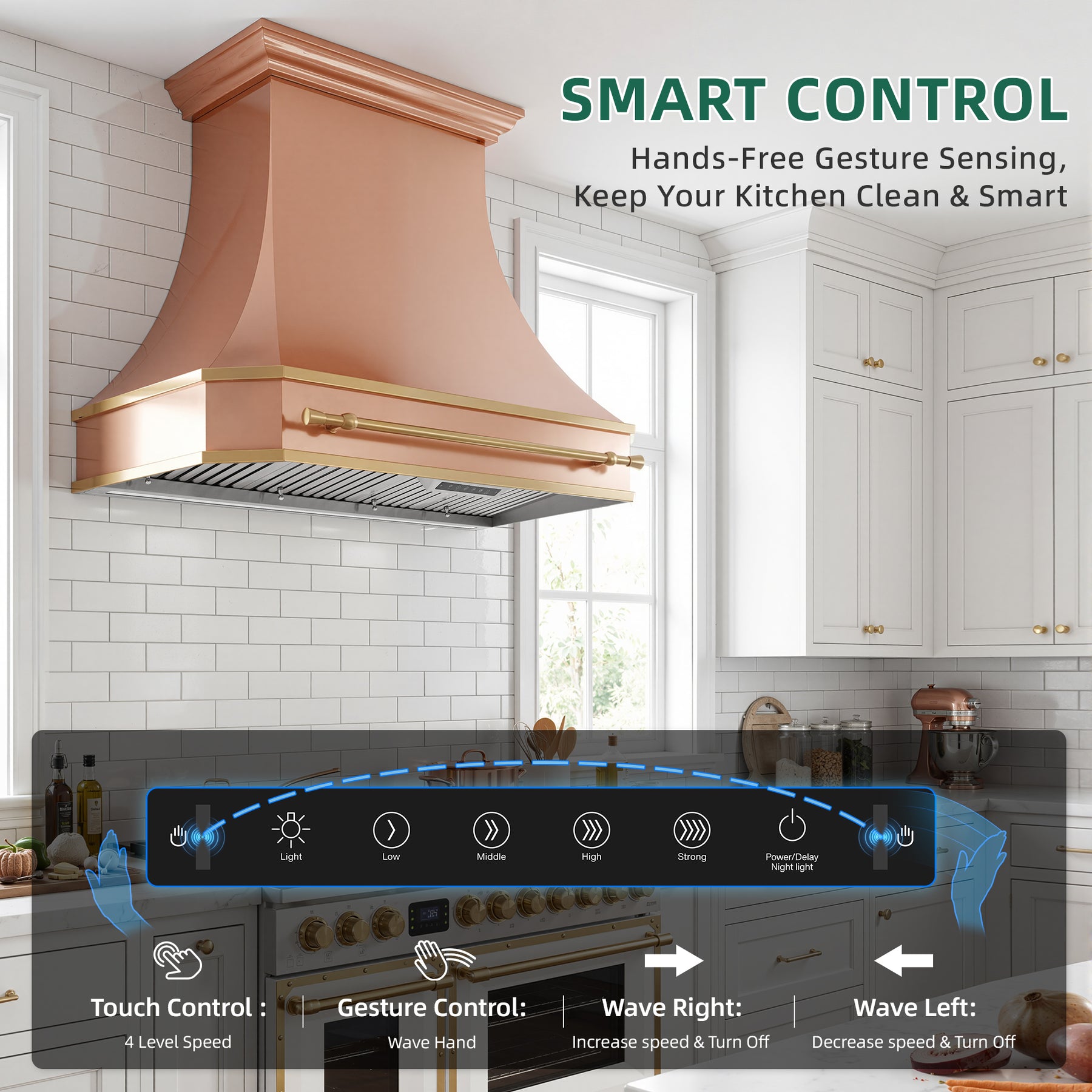

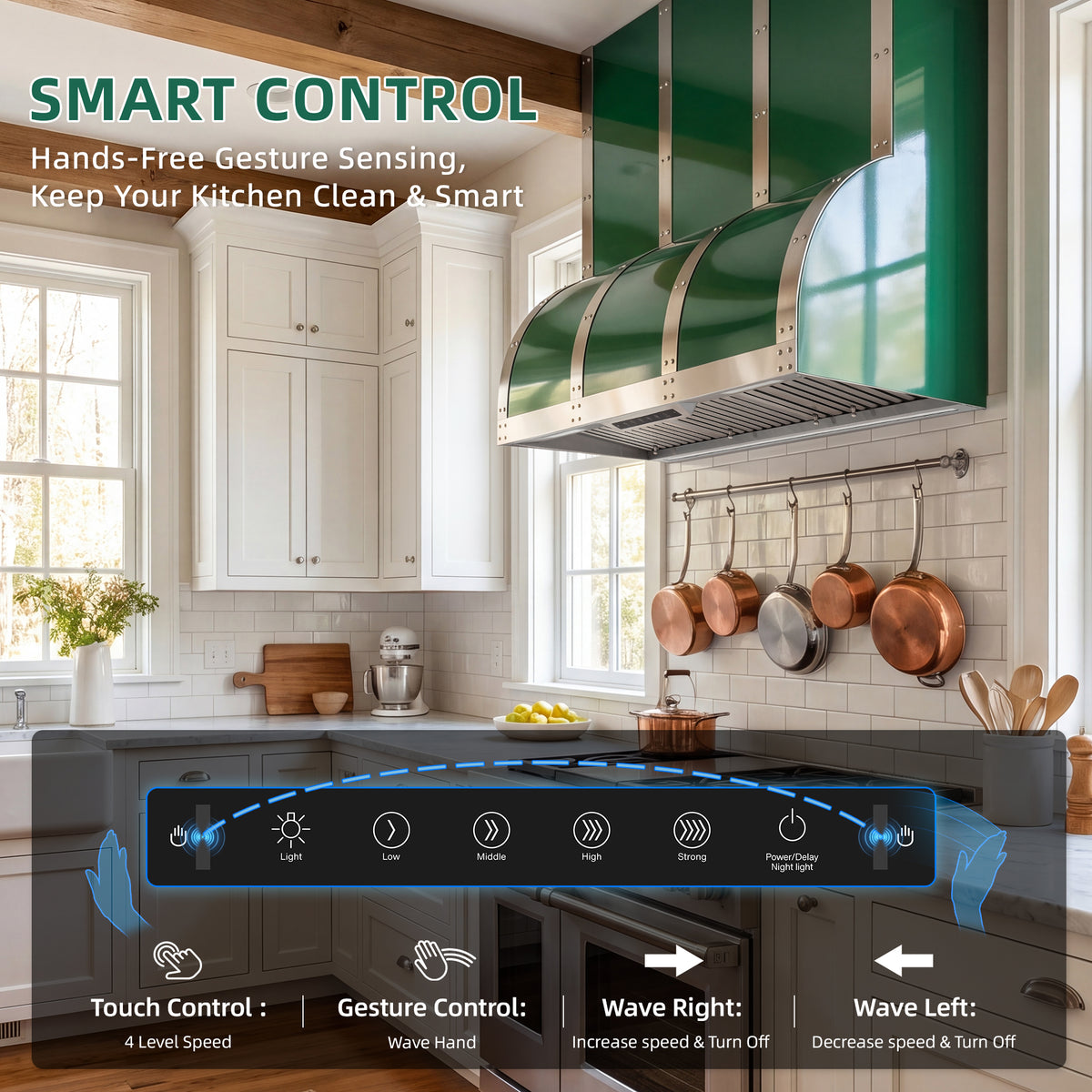

Hands-Free Gesture & Touchscreen Control
Control the hood your way. Gesture sensing allows you to adjust settings with a simple wave of your hand, while the responsive touchscreen panel provides quick access to fan speeds, lighting, and timer functions.

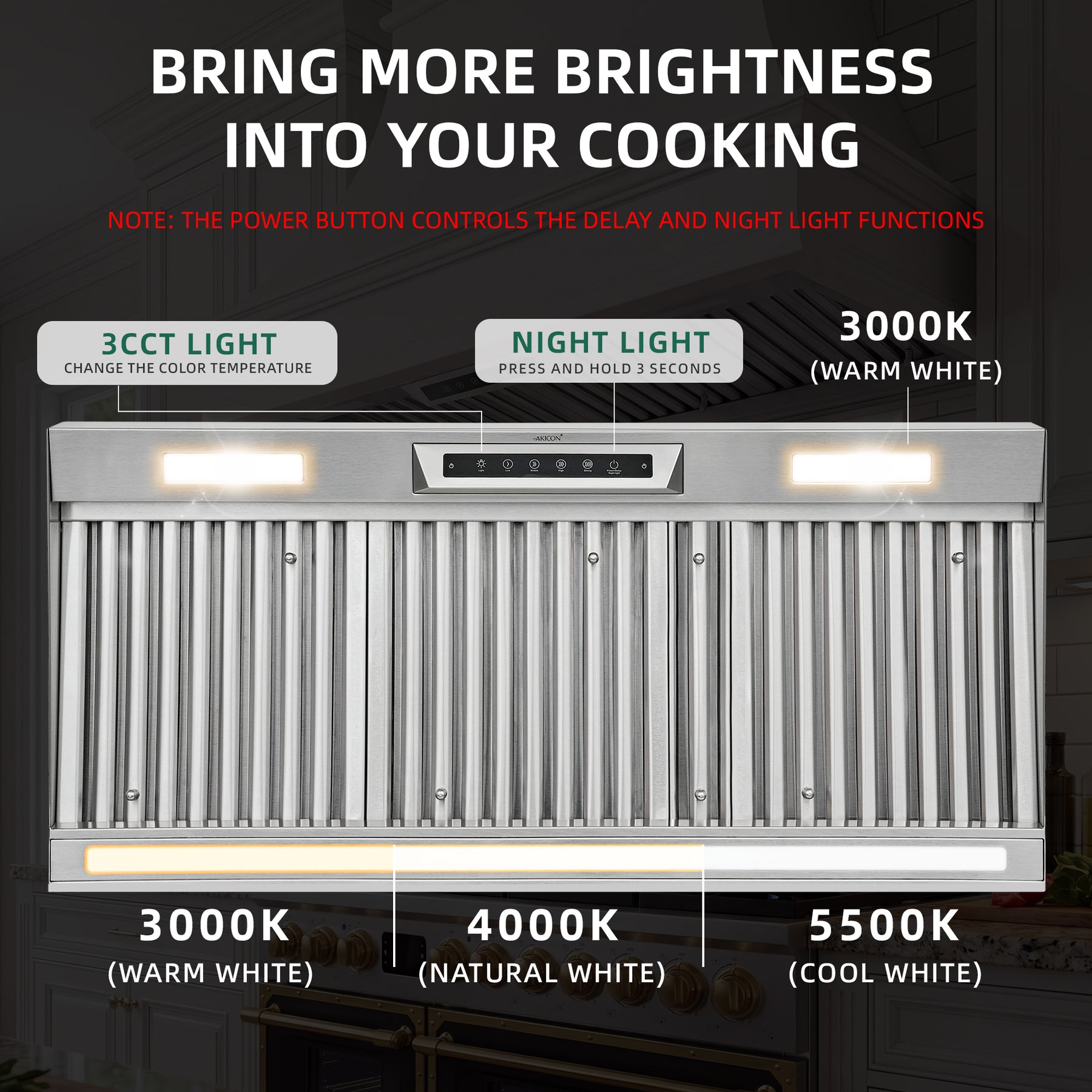

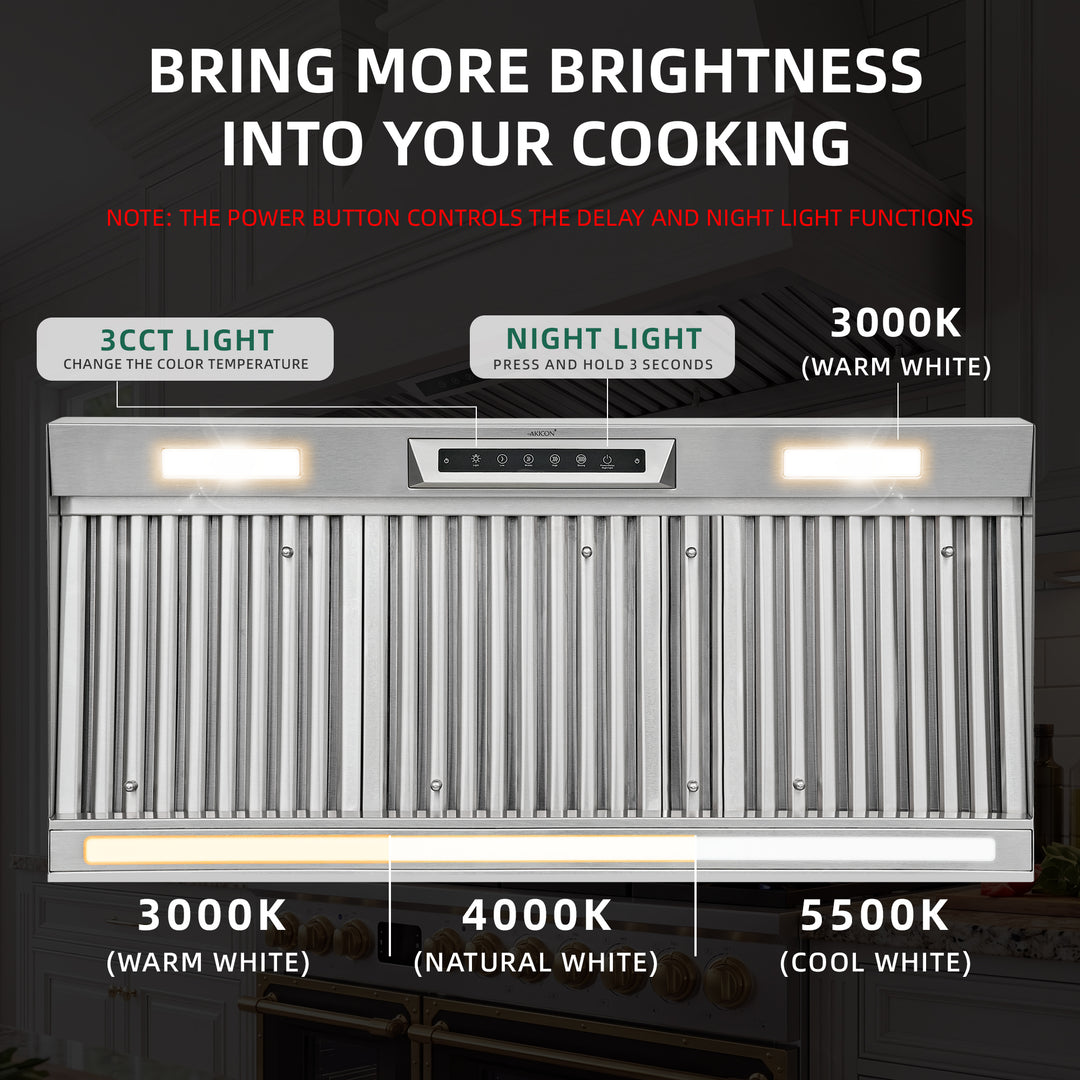

Adjustable Kitchen Lighting
Create the perfect cooking atmosphere with selectable LED color temperatures:
* Warm White (3000K)
* Natural White (4000K)
* Cool White (5500K)
A separate night light provides subtle illumination when full lighting isn't needed, while the built-in memory function remembers your last lighting preference.

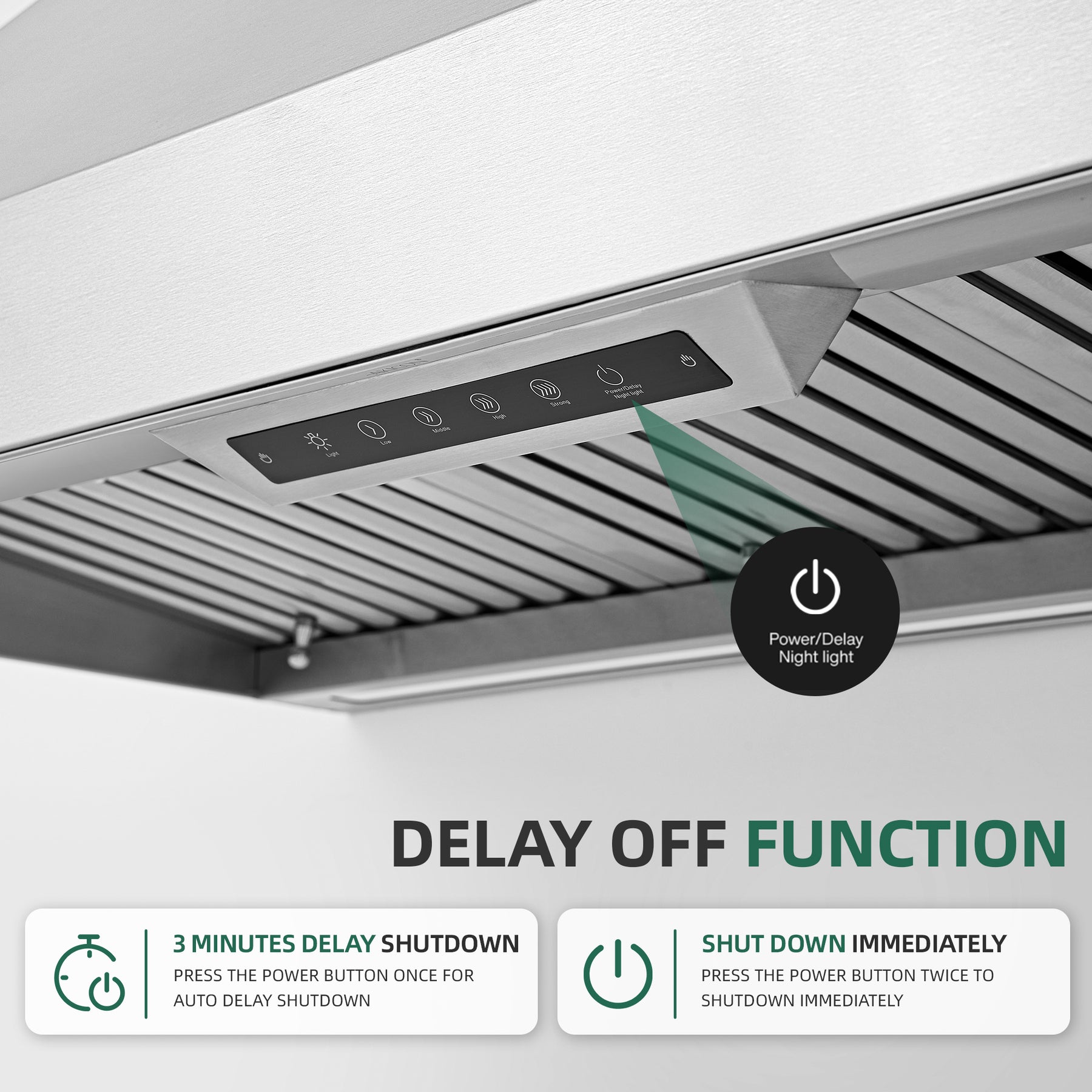

4-Speed Fan with Auto Delay-Off
Choose the airflow level that matches your cooking needs with four fan speed settings. When cooking is complete, the 3-minute delay-off function continues ventilating before automatically shutting down to help clear remaining fumes and moisture.

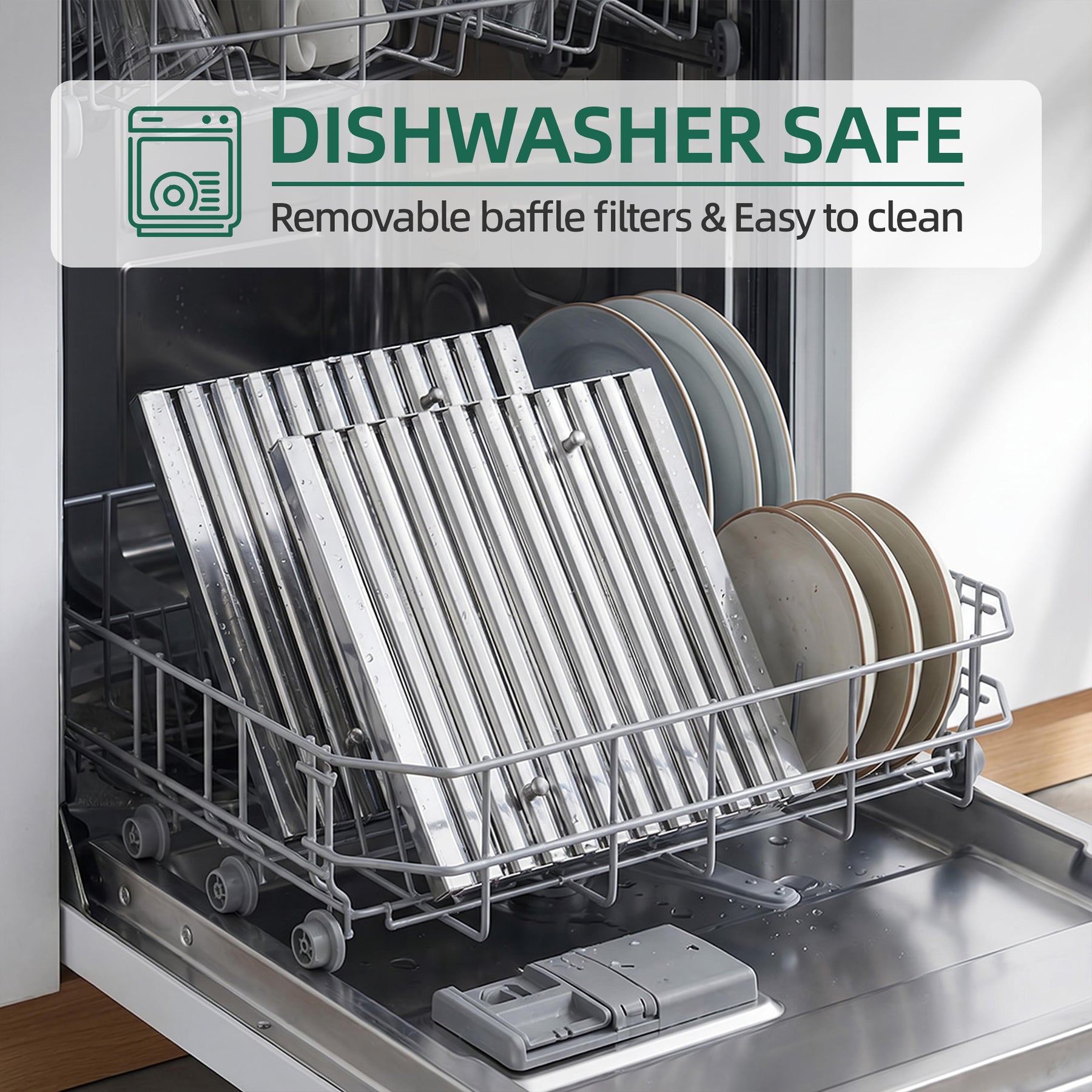

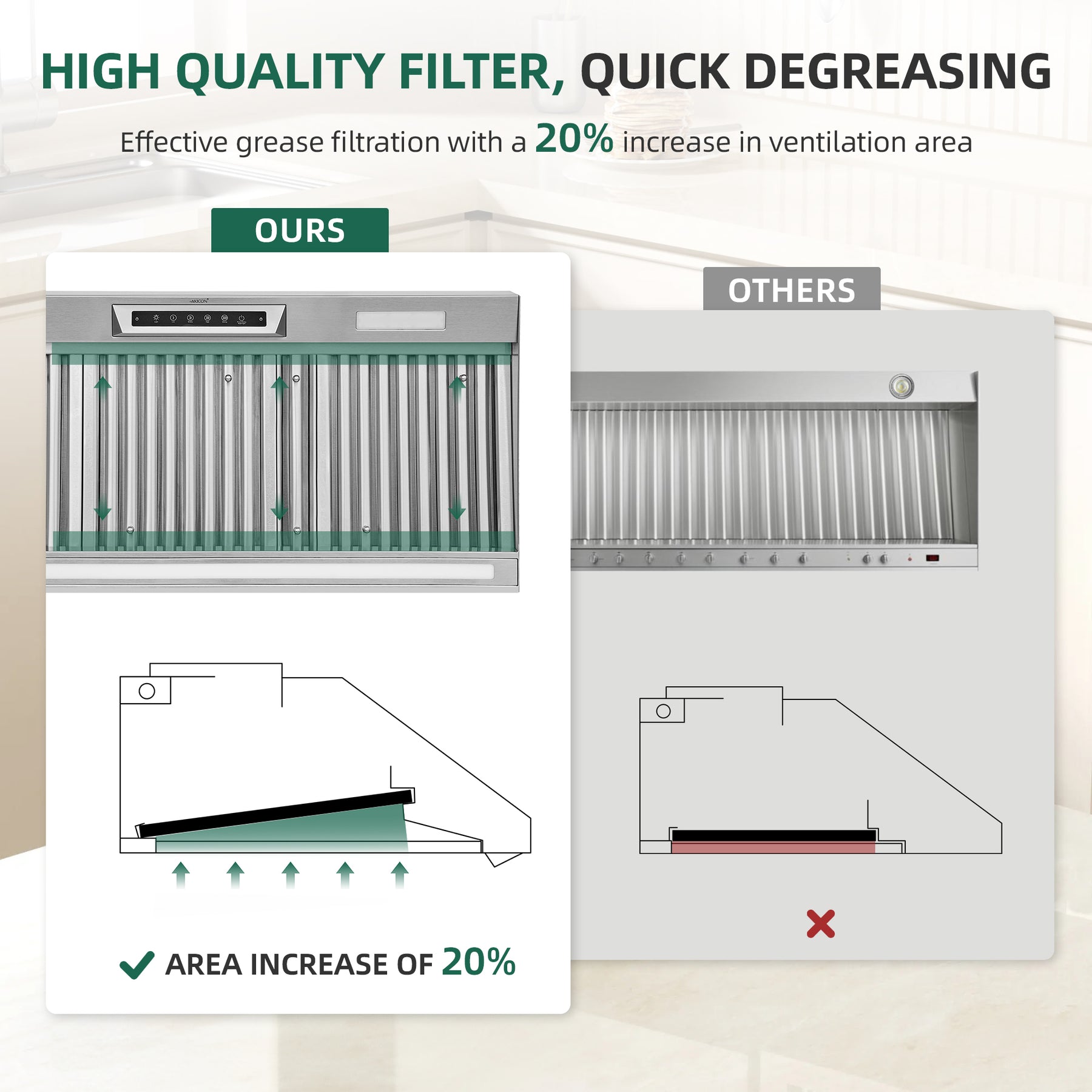

Easy-Clean Stainless Steel Baffle Filters
Heavy-duty stainless steel baffle filters efficiently trap grease before it enters the ventilation system. Their two-layer construction helps separate oil from vapor, reducing buildup and preventing drips. For easy maintenance, the filters are dishwasher-safe and reusable.
Designed for Everyday Performance
Combining powerful airflow, intuitive controls, customizable lighting, and easy maintenance, this built-in range hood insert delivers a cleaner, more comfortable cooking experience while complementing modern kitchen designs.

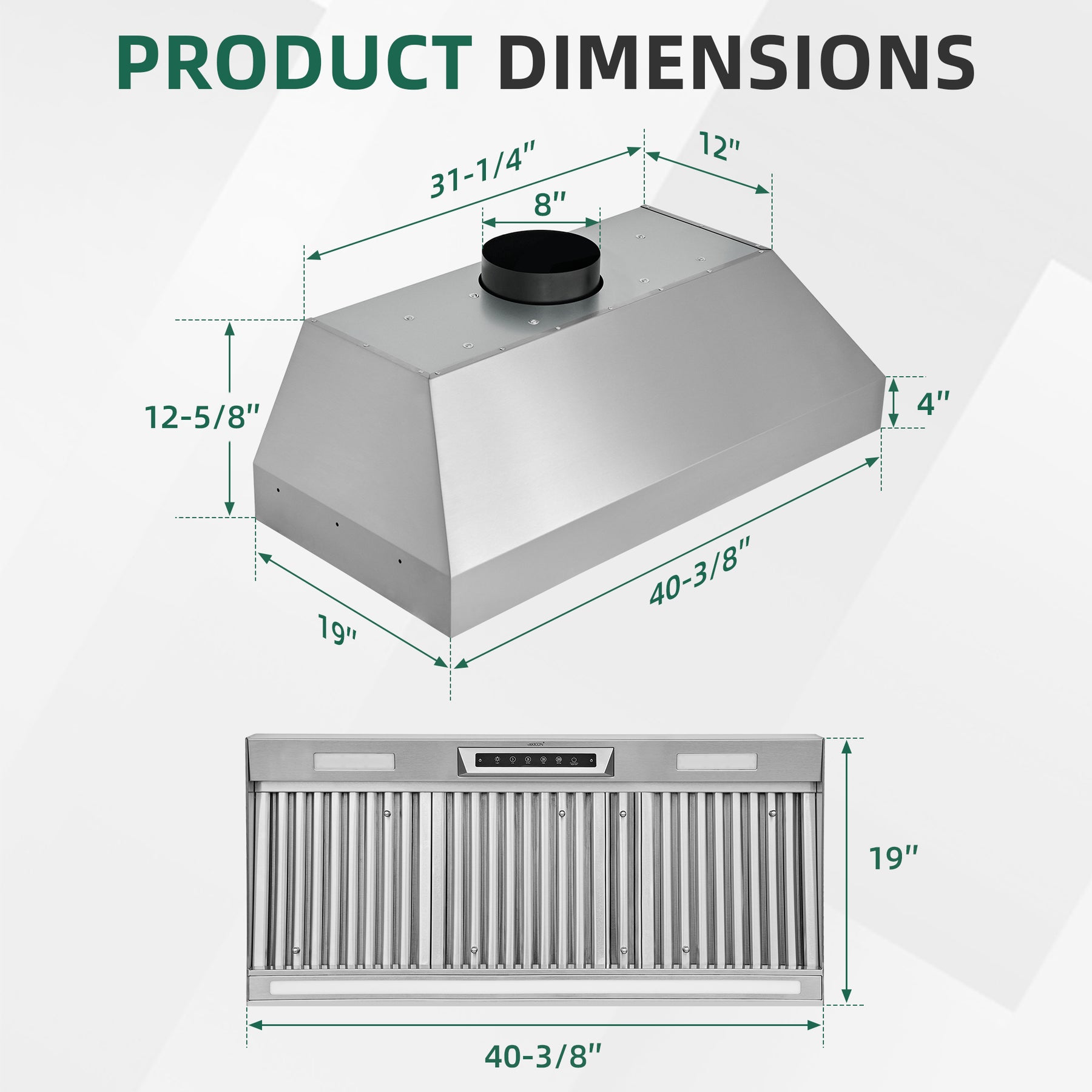

PRODUCT DIMENSIONS
- Model Number: AK-19WH-42-P
- Nominal Size: 42"
- Overall Width: 40.38"
- Overall Depth: 19"
- Overall Height: 12.63"
- Cutout Width: 40.5"
- Cutout Depth: 19.13"
- Cutout Dimensions: 40.5" W × 19.13" D
INSTALLATION REQUIREMENTS
- Duct Size: 8" Round
- Duct Discharge:Top
- Ventilation Type: Ducted / Exterior Venting
- Recommended Mounting Height: 30" – 36"
- Voltage: 120V / 60Hz
- Amperage: 3 A
- Maximum Airflow: 1200 CFM
- Fan Speeds: 4 Speeds
- Noise Level: Up to 69 dB / 7.5 sones
- Motor Configuration: Dual Motors
- Control Type: Digital Display Touch Control with Gesture
- Duct Size: 8" Round
- Duct Discharge: Top
- Filter Type: Stainless Steel Baffle Filters
- Lighting: 3CCT & LED & LED Night Lights
- Color Temperature: 3000K / 4000K / 5500K
- Voltage: 120V / 60Hz
- Amperage: 3 A
- Mounting Height: 30" – 36"
- Certification: ETL
Installation Requirements
- Recommended Mounting Height: 30" – 36"
- Minimum Cabinet / Hood Space:
- Duct Size: 8" Round
- Duct Direction: Top
- Electrical Requirements:
- Built-In Installation:
Downloads
- Installation Manual: AK-19WH-42 Installation Guide →
- Specification Sheet
- Dimension Drawing
- User Manual
Installation Video
Watch Installation Video →
Need Help?
