Powerful 600 CFM Suction
Equipped with copper ball-bearing motor, this range hood delivers 600 CFM airflow, swiftly eliminating smoke, grease, and cooking odors from kitchen. 4 speed settings (Low/Medium/High/Max) let you tailor ventilation to your cooking needs.
Ultra-Quiet Cooking
Engineered with advanced noise-reduction technology, the hood operates at noise levels as low as 42 dB on the lowest setting, ensuring a quiet kitchen environment even at maximum power (65 dB). Enjoy conversations or listen to music without disruption.

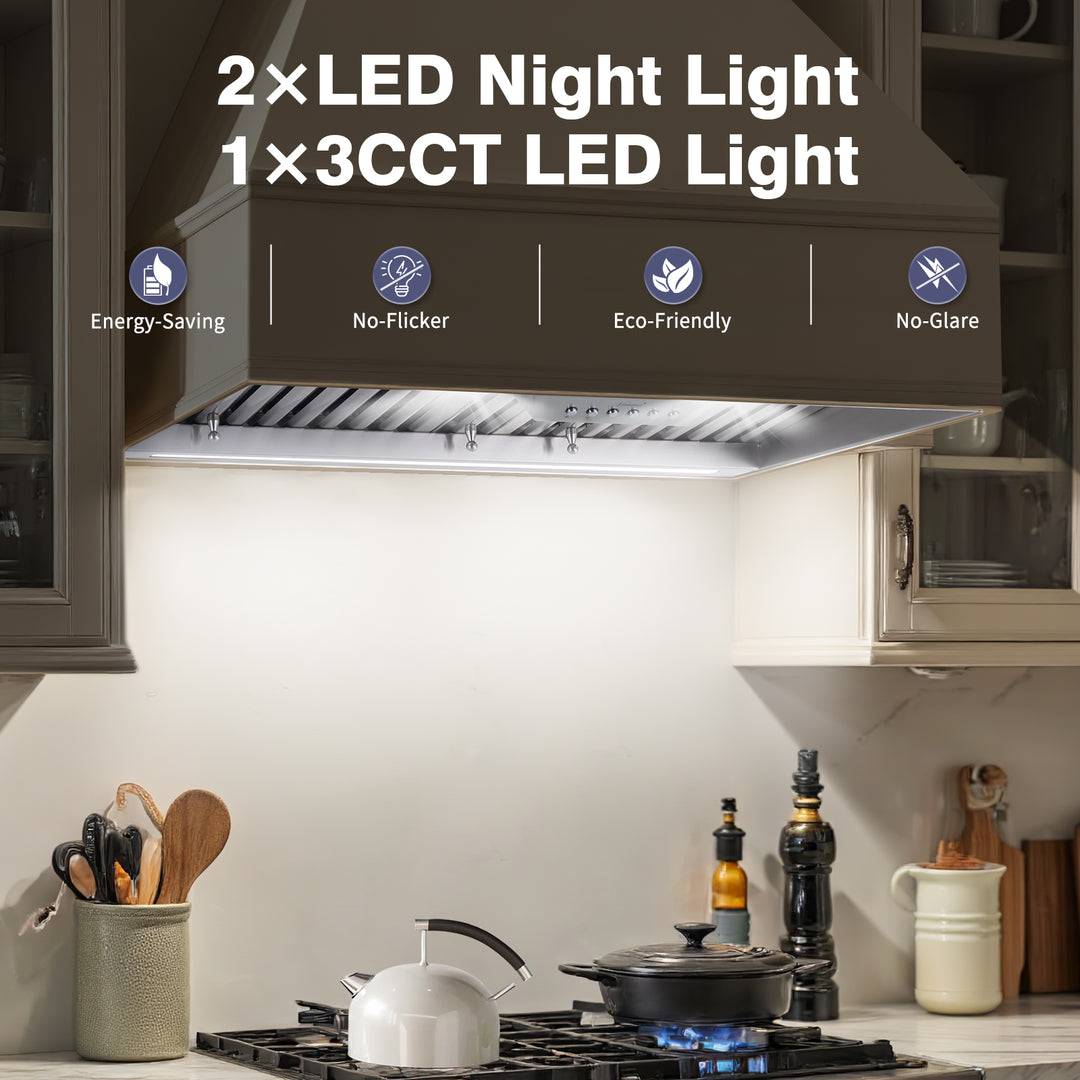

Dimmable LED Lighting
Two sets of energy-efficient LED lights (warm white, cool white) provide bright, flicker-free illumination. The brightness can be adjusted as needed, enhancing visibility during meal prep while creating a cozy atmosphere for gatherings.
Heavy-Duty Filtration and Maintenance
The stainless steel baffle filters trap up to 95% of grease and oil, preventing buildup on cabinets and walls. Both filters are dishwasher and removable, allowing quick cleanup. A built-in oil collector tray can capture drips for easy disposal.

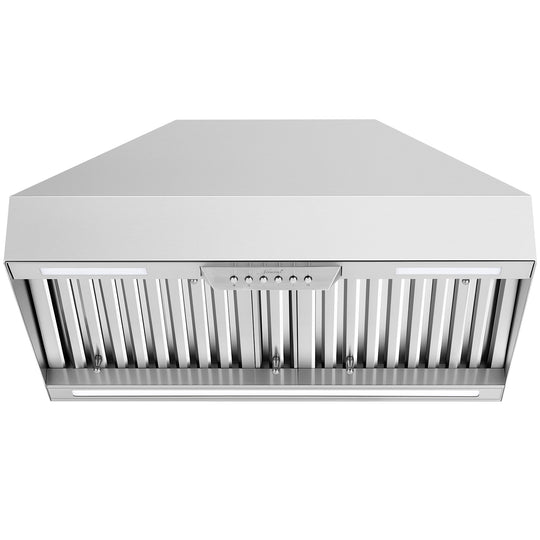

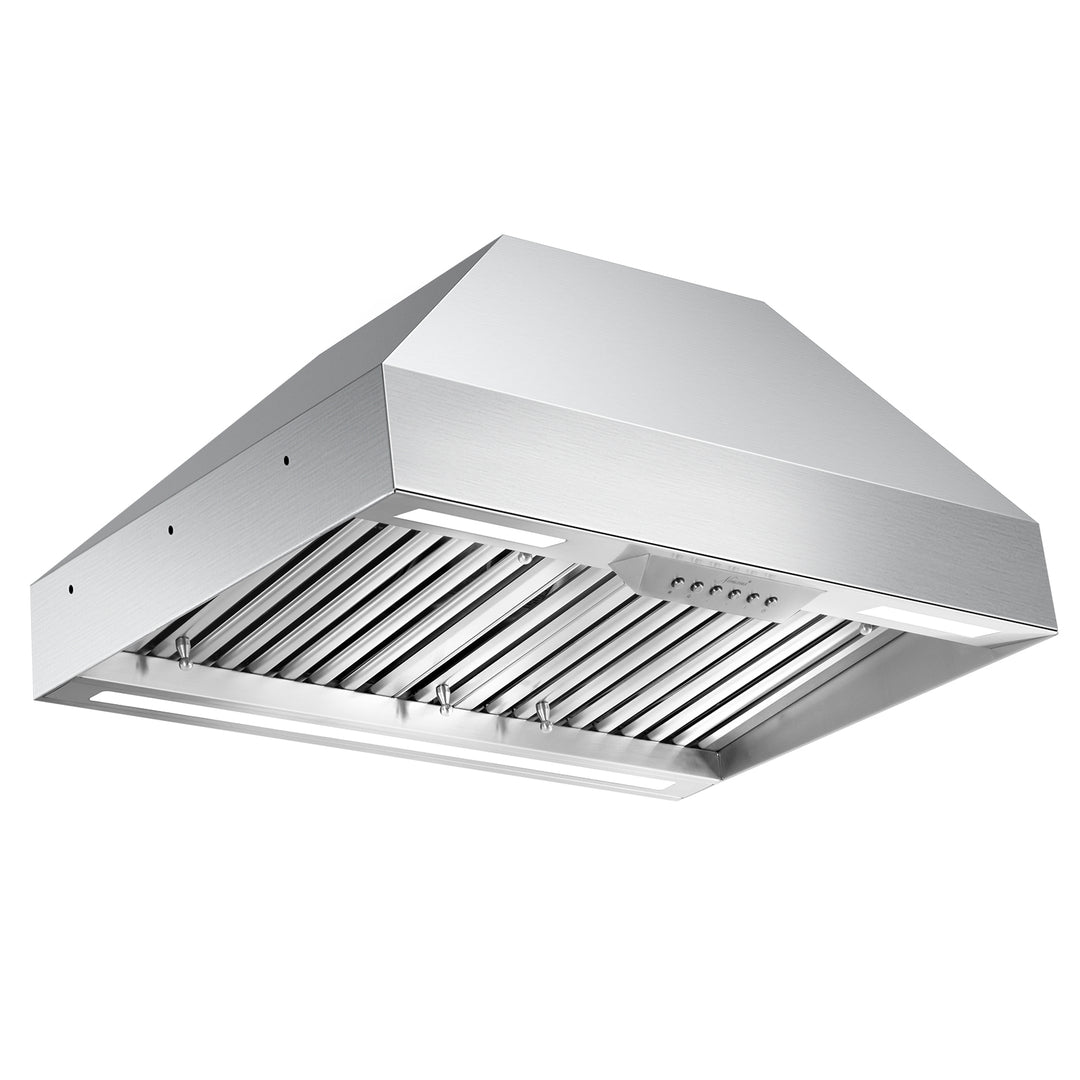

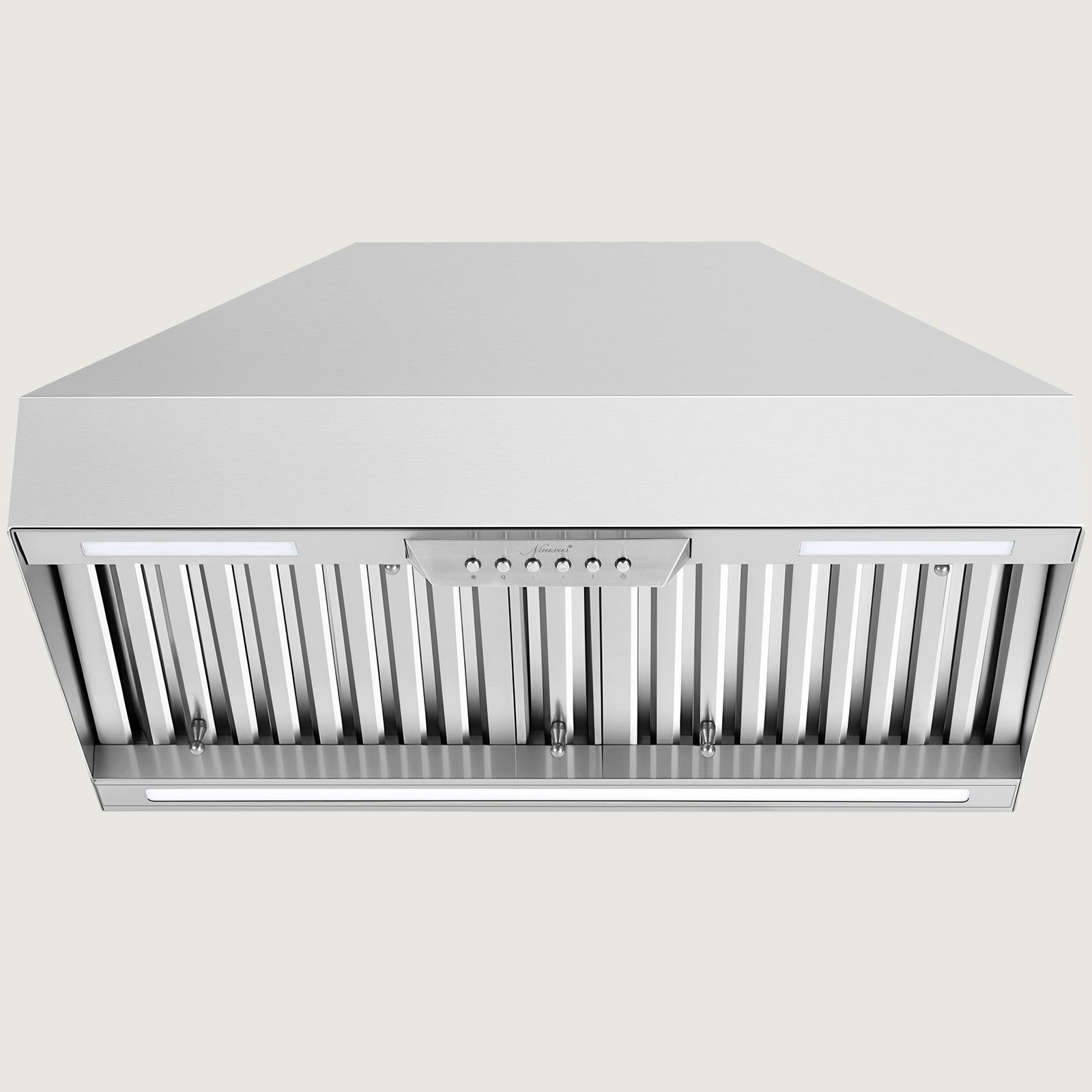

Sleek Design and Versatile Installation
Crafted from durable, fingerprint-resistant stainless steel, the hood’s modern design complements any kitchen decor while resisting corrosion and stains. Designed for ducted installation, it fits 8-inch round ducts and includes a seamless, flush-mount design. ETL certification ensures safety, 3-year warranty for peace of mind.

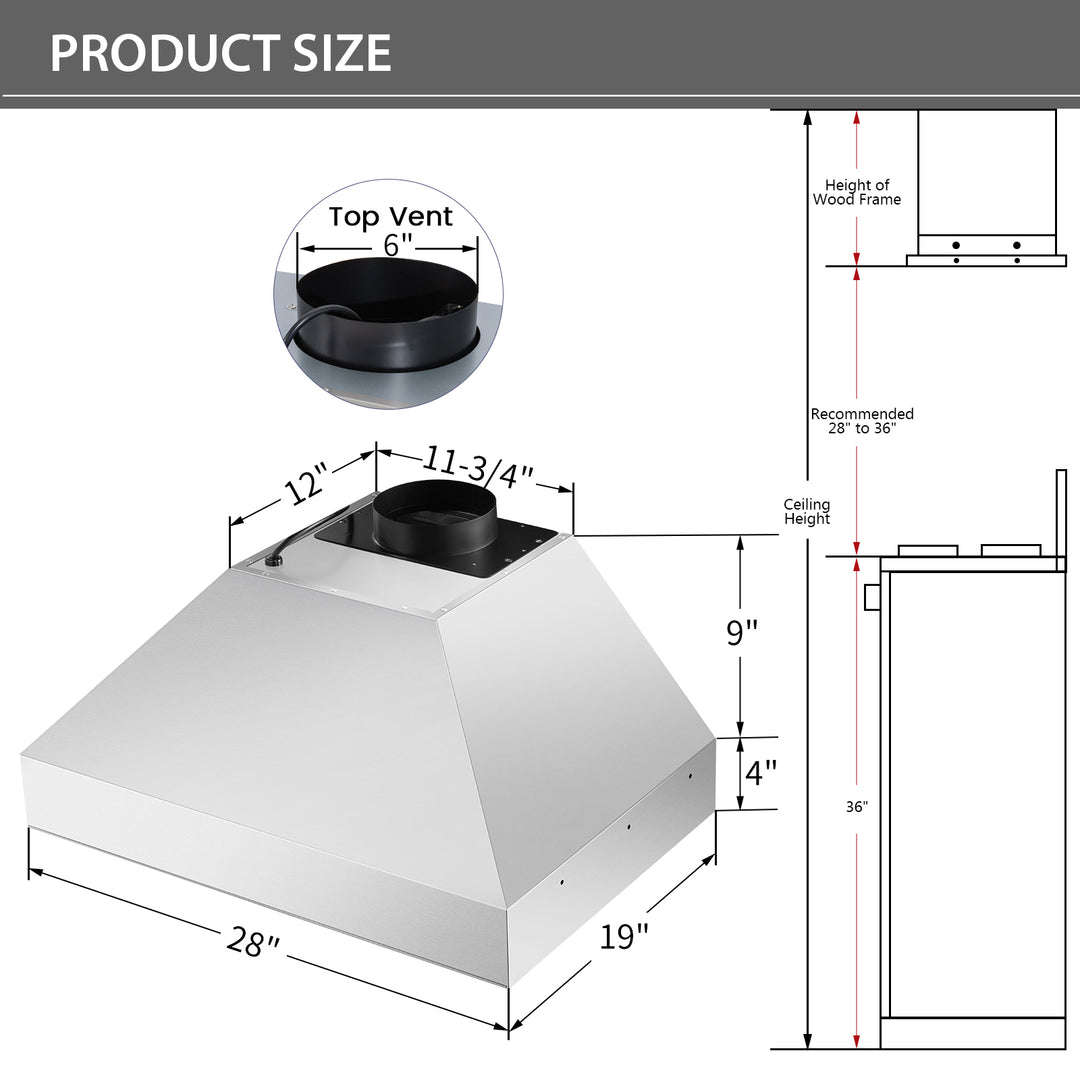

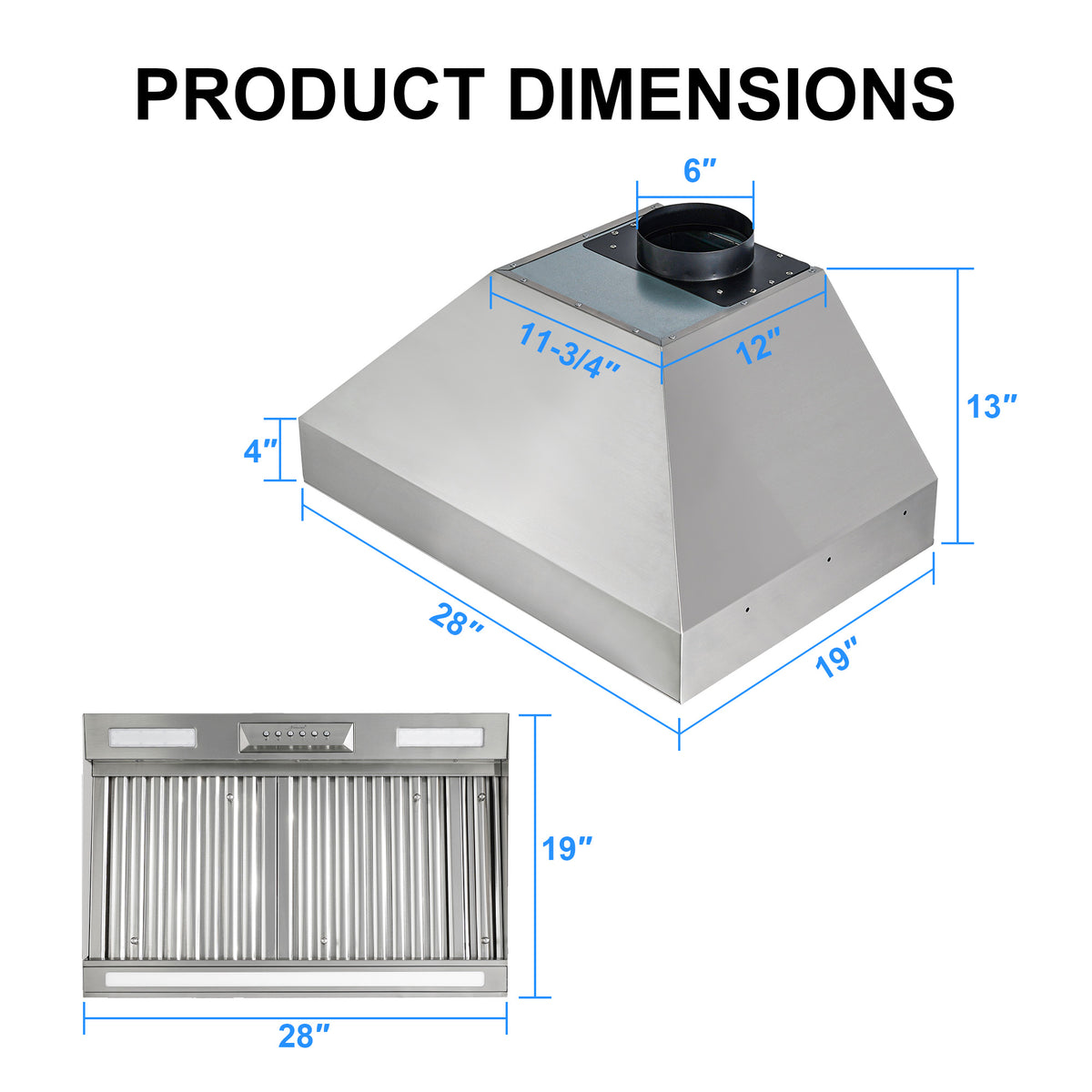

PRODUCT DIMENSIONS
- Model Number: NX-19IS-30
- Nominal Size: 30"
- Overall Width: 28"
- Overall Depth: 19"
- Overall Height: 13"
- Cutout Width: 28.13"
- Cutout Depth: 19.13"
- Cutout Dimensions: 28.13" W × 19.13" D
INSTALLATION REQUIREMENTS
- Duct Size: 6" Round
- Duct Discharge:Top
- Ventilation Type: Ducted / Exterior Venting
- Recommended Mounting Height: 30" – 36"
- Voltage: 120V / 60Hz
- Amperage: 3 A
- Maximum Airflow: 600 CFM
- Fan Speeds: 4 Speeds
- Noise Level: Up to 67 dB / 6.5 Sones
- Motor Configuration: Single Motor
- Control Type: Electronic Touch Control
- Duct Size: 6" Round
- Duct Discharge: Top
- Filter Type: Stainless Steel Baffle Filters
- Lighting: 3CCT & LED Night Lights
- Color Temperature: 3000K / 4000K / 5500K
- Voltage: 120V / 60Hz
- Amperage: 3 A
- Mounting Height: 30" – 36"
- Certification: ETL
Installation Requirements
- Recommended Mounting Height: 30" – 36"
- Minimum Cabinet / Hood Space:
- Duct Size: 6" Round
- Duct Direction: Top
- Electrical Requirements:
- Built-In Installation:
Downloads
- Installation Manual: NX-19IS-30 Installation Guide →
- Specification Sheet
- Dimension Drawing
- User Manual
Installation Video
Watch Installation Video →
Need Help?
